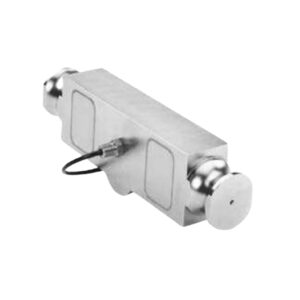

Double Ended Shear Beams | แบบใช้แรงกดทั้งสองด้าน
Model 65040
- Rated capacities of 25,000 to 125,000 pounds,
10 to 45 metric tons - Center supported, external pivot loading
- Integral conduit adaptor
- Trade certiied for NTEP Class IIIL:10000 divisions and
OIML R60 3000 divisions - Sensorgage™ sealed to IP67 standards
- Factory Mutual System Approved for Classes I, II, III;
Divisions 1 and 2; Groups A through G.
Also, non-incendive ratings (No barriers!)
Optional
- Stainless steel available as 65040W
- Internal pivot loading available as 65040-1122

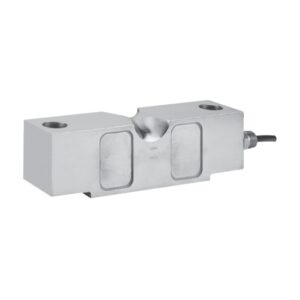

Model 4158
- Capacities 10k–75k lbs
- Low proile design for weigh bridge and silo applications
- Nickel plated alloy steel construction
- NTEP approved
- IP67 protection
Applichations
- Weigh bridges
- Tank and silo weighing

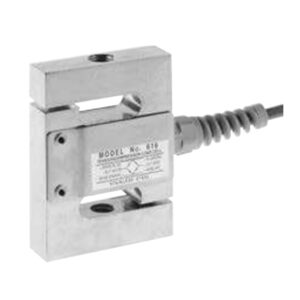

Model 619
- Capacities 1500–5000 kg
- Alloy steel construction
- Sealing: welded to IP67
- S-Type design for use in tension and compression
- 6 Wire cable (sense circuit)
Applichations
- Hopper (tank weighing)
- Hybrid scales
- Belt weighing
- Lever arm conversions
- Material testing machines
- Vibrations illing equipment
- Dynamometers

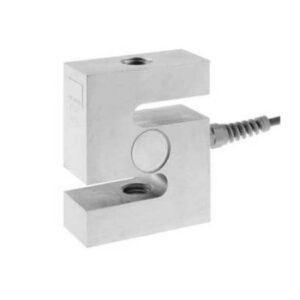

Model 615
- Capacities 50–1000 kg
- Nickel-plated alloy steel (615) or stainless steel (616)
construction - Protection: Model 616—IP66; Model 615—IP67
- For use in tension or compression
- 6-wire (sense) circuit
- Output standardised to ±0.1%
Optional
- Hopper (tank weighing)
- Hybrid scales
- Belt weighing
- Lever arm conversions
- Material testing machines
- Vibration illing equipment
- Dynamometers

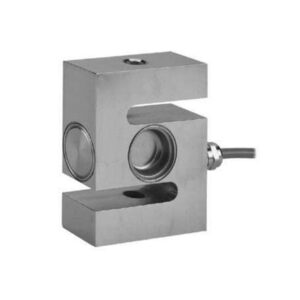

Model 620
- •Capacity range: 500–5000 kg
- Stainless steel construction
- Sealed by welding to IP68
- S-type design for use in tension and compression
- OIML approved to 3000d (500–5000 kg)
- NTEP approved to 5000d (500–5000 kg)
- Choice of mounting threads metric or uniied systems
- 6-Wire cable (sense circuit)
Optional
- Ex ia IIC T6-ATEX hazardous area approval
- Class I, II, III Division 1 – FM hazardous area approval
- IECEx approval available

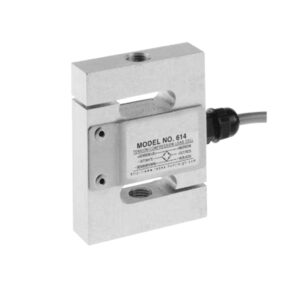

Model 614
- Capacities 50–500 kg
- Anodized aluminum construction
- OIML R60 approved
- IP67 protection
- For use in tension or compression
- 6 wire (sense) circuit
Optional
- Hopper (Tank weighing)
- Hybrid scales
- Belt weighing
- Lever arm conversions
- Material testing machines
- Vibrations illing equipment
- Dynamometers
Model 616
- Capacities 50–1000 kg
- Nickel-plated alloy steel (615) or stainless steel (616)
construction - Protection: Model 616—IP66; Model 615—IP67
- For use in tension or compression
- 6-wire (sense) circuit
- Output standardised to ±0.1%
Optional
- Hopper (tank weighing)
- Hybrid scales
- Belt weighing
- Lever arm conversions
- Material testing machines
- Vibration illing equipment
- Dynamometers
