Screw Terminal | ขั้วต่อสกรู

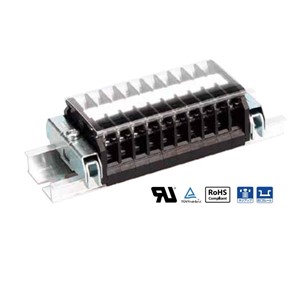

PT Series
Range of wire¤t ratings
PT series are available from 15A to 600A. There are 10 kinds of products. Even if the electric capacity is different, you can mount these terminal blocks on a rail as a one unit. It is used extensively. All types have been certified by UL and TUV for export manufactures.
Can mount this terminal block from above to the rail easily. (Except for PT-200~PT-600.)
(It is easy to mount terminal block from above to the rail.)
| Model | Rated | Applicable wire/ Rated current | |
| PT-20 | 600AC/DC | 1.25mm / 16A | 2mm / 22A |
| PT-30 | 600AC/DC | 1.25mm / 15A | 3.5mm / 30A |
| PT-40 | 600AC/DC | 3.5mm / 30A | 5.5mm/ 40A |
| PT-80 | 600AC/DC | 5.5mm / 40A | 14mm /75A |
| PT-90 | 600AC/DC | (8mm) / (50A) | 22mm / 95A |
| PT-150 | 600AC/DC | 22mm / 95A | 60mm / 175A |
| PT-200 | 600AC/DC | 38mm /132A | 100mm / 240A |
| PT-300 | 600AC/DC | 60mm /175A | 150mm / 310A |
| PT-400 | 600AC/DC | 100mm / 240A | 200mm / 400A |
| PT-500 | 600AC/DC | 150mm / 310A | 325mm / 600A |

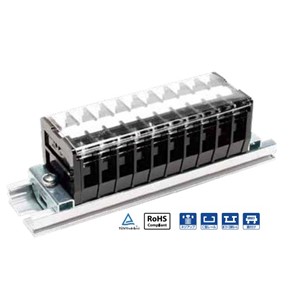

AT Series
Range of wire¤t ratings
Screw-up type terminal blocks. The high quality and the wide range of terminal blocks.
AT-10~AT-150 features the prevention of the screw loosening and an improved resistance to tensile force.
The rails can all be used with any of the terminal blocks for use with DAS type DIN 35mm or 20mm rails.
| Model | Rated | Applicable wire/ Rated current | |
| AT-10 | 600AC/DC | 1.25mm / 15A | 2mm / 20A |
| AT-15L | 600AC/DC | 2mm / 20A | 3.5mm / 30A |
| AT-20 | 600AC/DC | 2mm / 20A | 5.5mm / 40A |
| AT-30 | 600AC/DC | 3.5mm / 30A | 8mm / 50A |
| AT-60 | 600AC/DC | 8mm / 50A | 22mm / 90A |
| AT-100 | 600AC/DC | 14mm / 70A | 38mm / 130A |
| AT-150 | 600AC/DC | 22mm / 90A | 60mm / 160A |
| AT-200 | 600AC/DC | 38mm / 130A | 100mm / 200A |
| AT-300 | 600AC/DC | 60mm / 160A | 150mm / 300A |
| AT-400 | 600AC/DC | 100mm / 20A | 200mm / 400A |
| AT-500 | 600AC/DC | 150mm / 300A | 250mm / 500A |
| AT-600 | 600AC/DC | 200mm / 400A | 325mm / 600A |

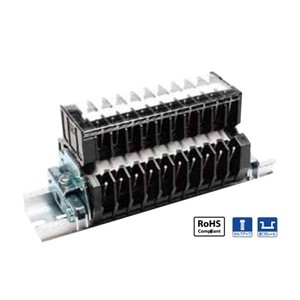

CTW Series
Range of wire¤t ratings
CTW series terminal block of a compact design can halve the required terminal block space inside your panels.
| Model | Rated | Applicable wire/ Rated current | |
| CTW-15S2 | 600AC/DC | 1.25mm / 15A | 2mm / 15A |
| CTW-15R | 250AC/DC | 2mm / 15A | 0.8(x2)mm / 15A |

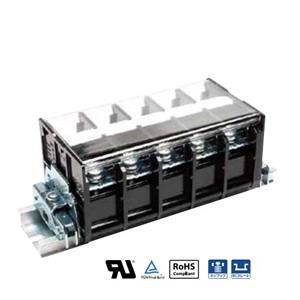

PTU Series
Range of wire¤t ratings
PTU series has features the prevention of the screw loosening and an improved resistance to tensile force. This type is one of most popular for workable. Which is excellent at withstand voltage and insulation resistance.
Applicable rail is DIN 35mm rail.
Can mount this terminal block from above to the rail easily.
(It is easy to mount terminal block from above to the rail.)
| Model | Rated | Applicable wire/ Rated current | |
| PTU-10 | 600AC/DC | 0.75mm / 11A | 1.25mm / 15A |
| PTU-20 | 600AC/DC | 1.25mm / 15A | 2mm / 22A |
| PTU-30 | 600AC/DC | 2mm / 22A | 3.5mm / 30A |
| PTU-40 | 600AC/DC | 3.5mm / 30A | 5.5mm / 40A |
| PTU-80 | 600AC/DC | 5.5mm / 40A | 14mm / 75A |
| PTU-100 | 600AC/DC | 14mm / 75A | 22mm / 95A |

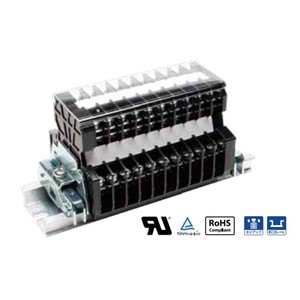

PUW Series
Range of wire¤t ratings
Ultra-up Mechanism Up screw type. This series are saved space and improved connection efficiency.
| Model | Rated | Applicable wire/ Rated current | |
| PUW-10 | 600AC/DC | 0.75mm / 11A | 1.25mm / 15A |
| PUW-20 | 600AC/DC | 1.25mm / 15A | 2mm / 22A |
| PUW-30 | 600AC/DC | 2mm / 22A | 3.5mm / 30A |
| PUW-40 | 600AC/DC | 3.5mm / 30A | 5.5mm / 40A |

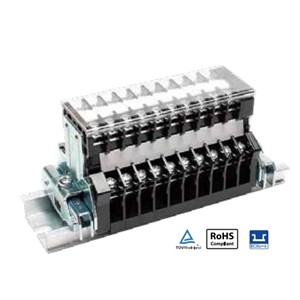

PTW Series
Range of wire¤t ratings
The support screw is held on the conductive plate even after it is loosened. Therefore you just have to tighten up the screw
| Model | Rated | Applicable wire/ Rated current | |
| PTW-10 | 600AC/DC | 0.75mm / 11A | 1.25mm / 16A |
| PTW-20 | 600AC/DC | 1.25mm / 16A | 2mm / 22A |

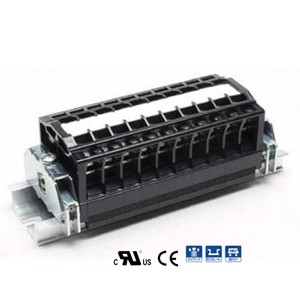

FPS Series
Range of wire¤t ratings
Adopts finger protection structure for safety.
It prevents from finger accidental contract.
Terminal screw dropping prevention design keeps machine equipment from short circuit accident by dropping screw. (Up-screw structure). The solderless terminal is available for the ring and fork type. Excellent at withstand voltage and insulation resistance. Mounting rail : DAV, DAS Series and DIN Rail / TS35 type
Can mount this terminal block from above to the rail easily. (It is easy to mount terminal block from above to the rail.)
| Model | Rated | Applicable wire/ Rated current | |
| FPS-10 | 600AC/DC | 0.75mm / 11A | 1.25mm / 15A |
| FPS-20 | 600AC/DC | 1.25mm / 15A | 2mm / 22A |
| FPS-20H | 600AC/DC | 2mm / 16A | 2mm / 22A |
| FPS-30 | 600AC/DC | 2mm / 22A | 3.5mm / 30A |
| FPS-40 | 600AC/DC | 3.5mm / 30A | 5.5mm / 40A |
| FPS-50 | 600AC/DC | 5.5mm / 40A | 8mm / 50A |
| FPS-80 | 600AC/DC | 8mm / 50A | 14mm / 75A |
| FPS-100 | 600AC/DC | 14mm / 75A | 22mm / 95A |
