Product | HMI & Accessory

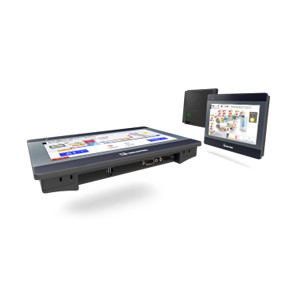

iP Series
iP series is upgraded in every aspect.
- 16.7M colors
- Flash 128 MB
- RAM 128MB
- 1x USB Host 2.0
- 1x Ethernet 10/100 Mbps
- 3x COM post : RS-232/RS-485 2W / 4W
- Power Supply 24VDC
Model No.
- 7″ MT8071iE
- 10.1″ MT8102iE

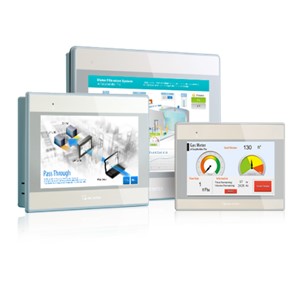

iE Series
Ultra-slim form factor and new color design
PCB corrosion prevention and built-in isolated RS-485.
- 16.7M colors
- Flash 128 MB
- RAM 128MB
- 1x USB Host 2.0
- 1x Ethernet 10/100 Mbps
- 3x COM post : RS-232/RS-485 2W / 4W
- Power Supply 24VDC
Model No.
- 7″ MT8071iP
- 10.1″ MT8102ip

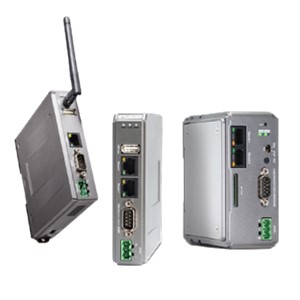

cMT Series
Ultra-slim form factor and new color design
PCB corrosion prevention and built-in isolated RS-485.
- No display built-in
- Flash 256 MB
- RAM 256 MB
- 1x USB Host 2.0
- 1x SD/SDHC
- 2x Ethernet 10/100/1000 Mbps (Ethernet model)
- 1x WiFi IEEE 802.11b/g/n (WiFi model)
- 3x COM port : RS-232/RS-485 2W/4W
- Power Supply 24VDC
- Database Server
- EasyAccess 2.0 (BUilt-in)
Model No.
- Ethernet cMt-SvR-102
- WiFI cMt-SvR-202

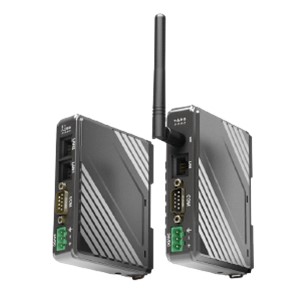

Gateway Series
IIoT Edge Gateway
Outstanding data processing and communication ability facilitate integration of different brands of PLCs with protocol standards like OPC UA / MQTT / Modbus TCP/IP
- No graphic interface
- Flash 256 MB
- RAM 256 MB
- Power supply 24VDC
Model No.
- cMT-G01
- cMT-G02
- cMT-G03
- cMT-G04
cMT x Series
IIoT Edge Computing
A major HMI upgrade that not only retains features of the predecessors but also integrates OT with the lloT.
- 16.7M colors
- Flash 4 GB
- RAM 1 GB
- 1x USB Host 2.0
- 2x Ethernet 10/100 Mbps
- 3x COM post : RS-232/RS-485 2W / 4W
- Power Supply 24VDC
Standard Model
- 7″ cMT2078X
- 10.1″ cMT2108X
- 15″ cMT2158X
- 15.6″ cMT2161X
- 16.7M colors
- Flash 4 GB
- RAM 1 GB
- 1x USB Host 2.0
- 1x Ethernet 10/100 / 1000 Mbps
- 1x Ethernet 10/100 Mbps
- 3x COM post : RS-232/RS-485 2W / 4W
- MPI Driver
- CAN Bus Driver
- Database Server
- OPC UA Server
- PLC Web Browser
- Web Interface 2.0
- Webview
- Power Supply 24VDC
Advanced Model
- 7″ cMT3072X
- 9.7″ cMT3092X
- 10.1″ cMT3102X
- 15″ cMT3152X
- 15.6″ cMT3162X

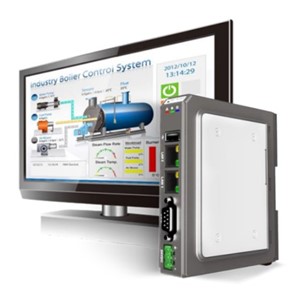

cMT-FHDX
Upgraded HMI Compatible with Screens of Various Resolutions. HDMI output allows displaying projects on any sizes of TV/LCD monitors with HDMI interface
- No display built-in
- Resolution 1920×1080
- HDMI interface port
- Flash 4 GB
- RAM 1 GB
- 1x USB Host 2.0
- 1x Ethernet 10/100/1000 Mbps (Lan1)
- 1x Ethernet 10/100 Mbps (Lan2)
- 3x COM port : RS-232/RS-485 2W/4W
- Power Supply 24VDC
Model No.
- cMT-FHDX-220
