PLCs | SDirect LOGIC PLC

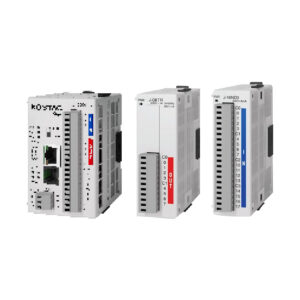

KOSTAC SJ ETHER
Small but powerful. Micro size high-performance PLC.
-Two kinds of CPU of card size are available.
-The main body is equipped with up to 14 input/output points such as discrete and analog points, depending on the type of CPU, and it enables control from a single CPU.
-The block type comes without a base as a means for eliminating wasted space and prioritizing space-savings.
Specification
- 2 type CPUs (Standard, Analog)
- Maximum 8 expansion modules available
- CPU with built-in I/Os (14 points maximum)
- Maximum 142 points I/Os
- 7.5K Words Program memory and 7.5 K Words Data memory
- 3 communucation ports available
- Includes 16 loop PID control

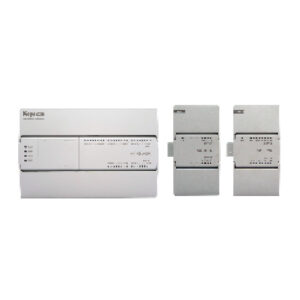

NK1 Series PLC
– 32K program capacity, built-in FROM
– Supports Ethernet Protocol-Free Communication
– Cpu unit /O points range from 20 to 40. maximum extensible
VO points to 496
Cpu unit 40 + Expansion Unit 32 x14 + Function Board 8)
– Standard cpu unit with three communication ports RS232C,
RS485 and Ethernet
(another serial port can be added via the function board)

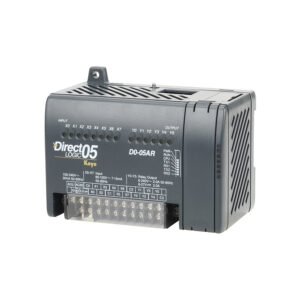

DirectLOGIC 05
The DL05 series PLC offers with features you won’t find in most bricks – 6 I/O combinations of AC, DC and relay I/O, and advanced programming functions such as PID and drum sequencing.
Specification
- 8 inputs and 6 outputs
- 2K program memory
- 4K data memory
- 2 communication ports
- 129-instructions, including 4 PID loops
- Removable terminal block
- 12/24VDC powered versions
- Discrete and analog I/O option modules
- Thermocouple and RTD temperature input modules.
- 1-channel high speed input/pulse output module(H0-CTRIO)
- Memory cartridge/real-time clock option module
- CUnet,DeviceNet™ slave,Ethernet,and Profibus option module

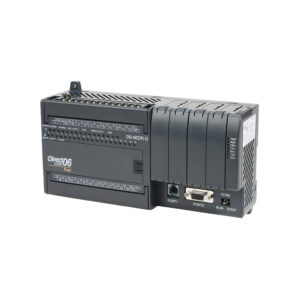

DirectLOGIC 06
DL06 is our first micro PLC to combine its fixed I/O of 20 inputs and 16 outputs with four option card slots for expansion (discrete, analog, communication modules), all in the same package. With the DL06, you can use the same PLC panel layout for all applications from 36 to 100 I/O.
Specification
- 20 inputs and 16 outputs
- 7.5K program memory
- 7.3K data memory
- 2 communication ports,including built-in RS232/RS422/RS485 port
- 229 instructions, including eight PID loops and ASCII
- Removable terminal blocks
- Built-in 3A 24VDC auxiliary power supply for field devices
- 12/24VDC powered versions
- Built-in real-time clock/calendar
- Discrete and analog I/O option modules
- Thermocouple and RTD temperature input modules.
- 1-channel high speed input/pulse output module(H0-CTRIO)
- Memory cartridge/real-time clock option module
- CUnet,DeviceNet™ slave,Ethernet,and Profibus option module
- Optional plug-in LCD display

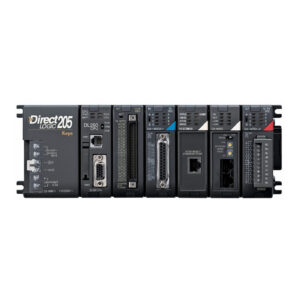

DirectLOGIC 205 Series
Small but powerful. Micro size high-performance PLC.
– Five kinds of CPU are available.
– Module addition: Up to 8 slot
-Maximum I/O points: 8,192 points
– Program memory: 2 K to 15.8 K/ Data memory: 2.4 K to 30.4 K
– Communication port: 2 ports (1 port only for the D2-230)
– PID control: Up to 16 build-in loops (D2-260/265)
Specification
- AC/DC discrete input/output, up to 32 points per mobule
- 10 amp relay out
- 12-bit and 16-bit analog inputs and outputs
- Temperature inputs(t/c and RTD)
- Data communications, including CUnet,serial and Ethernet modules
- Counter input/pulse output
- Remote I/O master and slave
- H2-CTRIO, 4-channel high speed counter/pulse output
- H2-EBC, Ethernet slave base controller

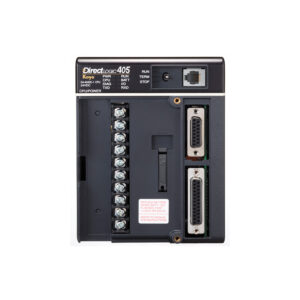

DirectLOGIC 405
The DL405 product line packs a lot of power for its size and price. It has the widest variety of I/O modules and configurations of all our PLCs.
-Two kinds of CPU are available
-Module addition：up to 8-slot
-Maximum I/O points：2,048 points
-Program memory：31.5K/Data memory：15.3K
-Communication port：4 port
-PID control：Up to 16 built-in loops
Specification
- AC/DC discrete input/output, up to 64 points per module
- 10 amp relay out
- 12-bit and 16-bit analog inputs and outputs
- Thermocouple and RTD inputs
- Data communications, including serial and Ethernet modules
- Counter input
- Remote I/O master and slave modules
- Ethernet I/O master and slave modules
- New high-speed counter module
- 16 PID loops built in, up to 96 with option modules
