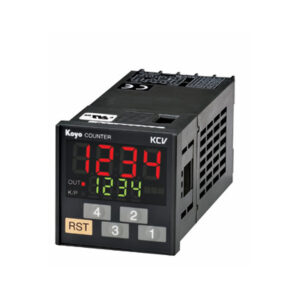

A preset counter that aggregates counts with functions that provide a large, two-color LED for display that is easy-to-read in a small DIN48x48 body. Dual output of predicted output and preset output can be set with settings for predicted output.

Specification

Maximum counting speed
30 Hz/10 kHz (Can be selected by DIP switch.)
200 Hz/1 kHz (Can be selected in setup mode.)
Preset counter of DIN48 x 48 miniature body that consolidates the easy-to-see large two-color LED display and enhanced functions
By setting the prediction output value, double output – prediction output and preset output – can be set.

Tool management: Replacement notification/warning
Whetstones for grinding: Maintenance notification
Quantity management: Total counters/preset counters
Time management: Integration timers

Specification

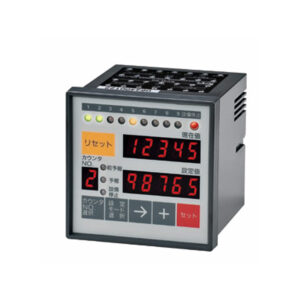

The KCM-50 series consolidates nine counters into one unit and the
KCM-51 series consolidates eight counters (timers) into one unit.
These counters notify the maintenance period of several tools, as needed
for tool replacement with machining centers and NC machine tools.
Tool management: Replacement prediction / warning
Whetstone for polishing: Maintenance prediction
Quantity management: Total counter / Preset counter
Time management: Integrating timer

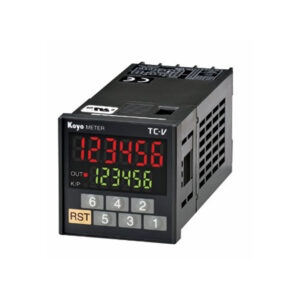

This tachometer is provided with a large display that is easy to read in a small DIN 48 body.
The bright character display is with a large red LED and a character height of 10 mm, which makes it easy to read from a distance and at an angle.

Specification

The TC-V series has a compact DIN48□ size with an easy-to-see large display.
With characters represented by bright large red LEDs, 10 mm
high characters can be clearly seen from a distance and an angle.
The green LED is used for the preset value to differentiate it from the measured values.
The preset value can be easily set to 0 using the setting key
corresponding to each digit, like using a digital switch.
The TC-V series can be easily operated owing to a selection method that uses
DIP switches for basic functional setting and the digit keys for detailed setting.

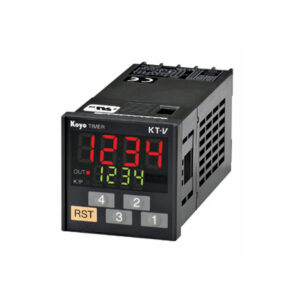

A large display that is easy to read has been provided in a small DIN48 size.
The large red LED is bright with a character height for display of 12 mm, which allows it to be seen easily from a distance and at an angle.

Specification

The KT-V series has a compact DIN48□ size with an easy-to-see large display
With characters represented by bright large red LEDs, 12 mm high characters can be clearly seen from a distance and an angle.
The green LED is used for the set value to differentiate it from the measured values.
The set value can be easily set to using the setting key corresponding to each digit, like using a digital switch.
The TC-V series can be easily operated owing to a selection method that uses DIP switches for basic functional setting and the digit keys for detailed setting.
